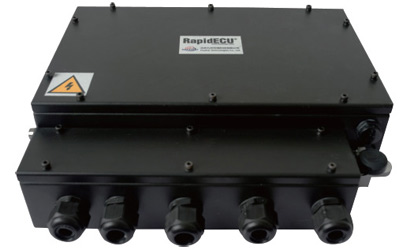

RapidECU - M series

The M series hardware platform is mainly aimed at the development and mass production of drive motor control system.






       RapidECU-M series is equipped with the latest generation of 32-bit processor chips conforming to ISO26262 standard, suitable for prototype development and mass production of permanent magnet synchronous motor, dc brushless motor. Support the position sensor of position sensor, such as vector control, rotating transformer and photoelectric encoder. Patented heat dissipation design technology, power density is greater than 10kVA/Kg, hardware reliability is high, bulk hardware provides 8 years or 150,000km warranty.




       It can be used in permanent magnet synchronous motor, dc brushless motor control, etc.

 平台型号 RapidECU-M2
 基本参数
  支持的电机类型   永磁同步电机、直流无刷电机
  支持的传感器类型   无位置传感器,光电编码器,旋转变压器
  基本用途   车用电机控制\分布式轮毂电机控制
  控制算法   矢量控制
  运行模式   扭矩模式、转速模式
  通信方式   CAN2.0B,ISO11898
  程序刷写   基于CAN总线的Bootloader在线刷写
  标定   ASAM2标准CCP协议
  额定容量   60kVA
  最大容量   100kVA
  额定电压   384V
  额定电流   150A
  峰值电流   300A
  工作环境温度   -40℃~+65℃(55℃以上降额运行)
  防护等级   IP66
  冷却方式   水冷
  重量   ≤10kg
  外形尺寸   350mmx180mmx120mm
