Vehicle control unit based on RapidECU VCU rapid development solution, carrying Freescale latest generation of 32-bit high performance microprocessor chip, high speed CAN communication interface, a maximum of 4 road in a few months to complete the development of vehicle control algorithm, realize the loading test.
New energy vehicles innovative electronic control system includes vehicle control unit \ hybrid control unit (VCU quill \ HCU), automatic transmission control unit (TCU), battery management system (BMS), motor control unit (MCU), DCDC converters, condition monitoring and remote management system (RMS) and so on, as shown in the figure below:

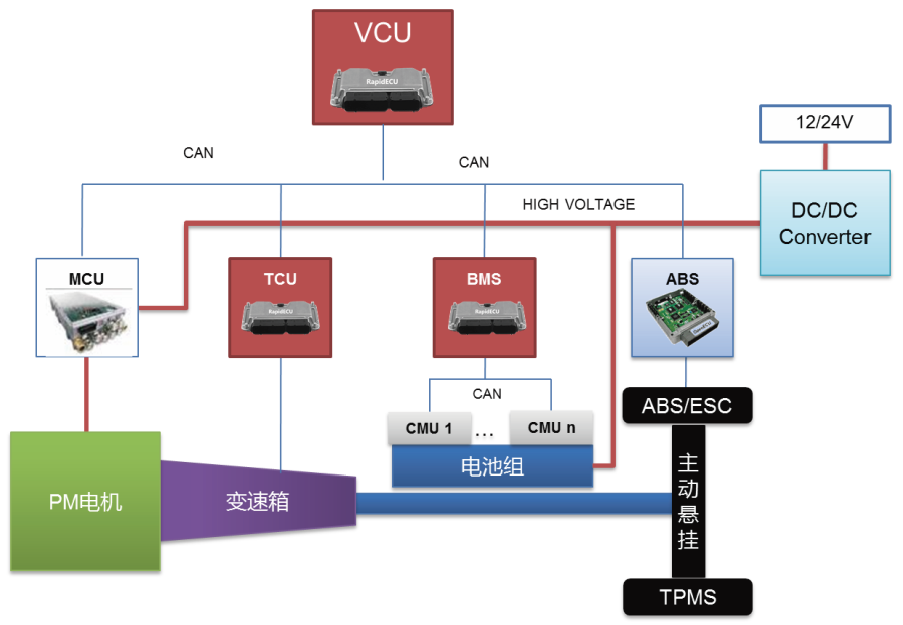

Schematic diagram of electronic control system for new energy vehicles
• Vehicle drive control
• Vehicle energy management
• Network management, monitoring |
|
• Fault diagnosis, crawling function
• Brake priority |
|
• Vehicle status monitoring and display
• Electric vacuum pump, electric cooling water pump, cooling fan control |
|
Optional features:
|
• Electronic differential speed control (hub motor) |
|
|
• Braking energy recovery |
|
|
Schematic diagram of electronic control system for new energy vehicles
Project: pure electric power assembly control system (VCU \TCU\ MCU) development
|
