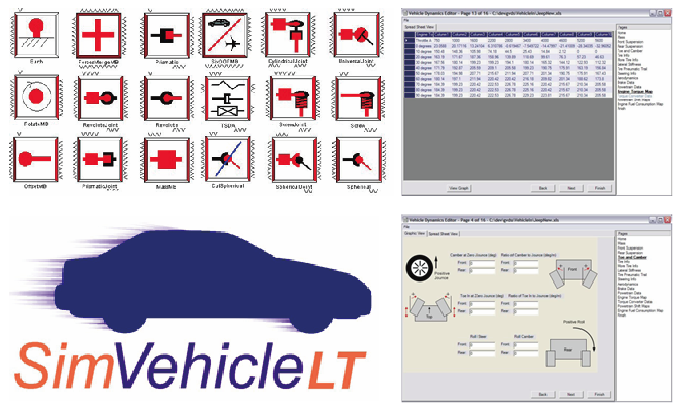

• View module library.
Product features:
• It has the professional muddy road tire model to make the vehicle more accurate in the off-road condition simulation;
• In real time, the force of each wheel and ground on the XYZ axis is shown, and the stress state of the wheel is observed more intuitively.

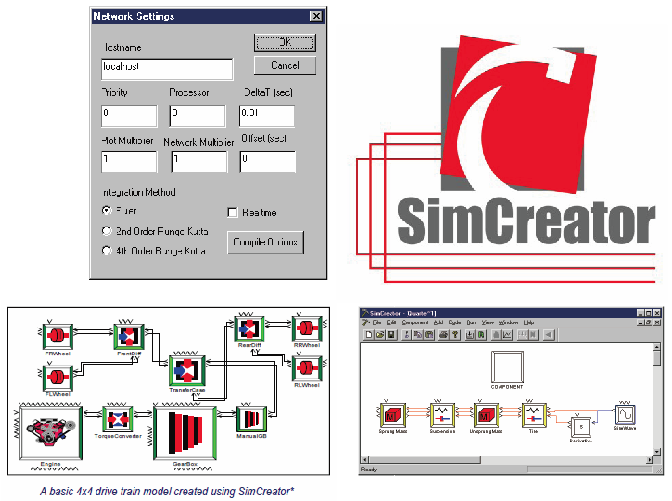

Simulation data recording and analysis
• When the SimCreator simulation system is running, the user can set the data that needs to be recorded, and the state variables can be recorded in the simulation process;
• The recorded data can be exported to a variety of commonly used data formats for analysis and use;
• In SimCreator, the recording data can also be illustrated and analyzed;
• Simulink is suitable for constructing logical relation model and control model;
• In collaboration with Matlab/Simulink, the user can combine the Simulink model with the SimCreator model through s-function for collaborative simulation.
SimVehicle LT vehicle dynamics simulation model
SimVehicle LT is a dynamic model with high fidelity, multi-body and real time. It establishes a four-wheel high fidelity real-time vehicle dynamics model, including the editing of vehicle data and the creation of a new vehicle model graphical user interface software. The SimVehicle LT can be used in the loop simulator and the hardware in the loop emulator. SimVehicle simulates all corners with a six-degree-of-freedom component. The brake pedal, gear and accelerator pedal are used to calculate the torque of the wheel. Each Angle comprises a spring and damping ratio, a buffer, a stop rod, a recoil nodular geometry and a roller height. The mass that is not installed on the spring as an independent part is connected to the main structure by the prism. The SimVehicle LT is developed by SimCreator's C code generation capability.
Model diagram
Functional Features
• Testing automobile design before expensive prototype design;
• The ECU is evaluated by using hardware in loop simulation;
• Developing control strategies in a stable software environment;
• Test the use of durable vehicle model operation in the ring performance.
