| Functions And Applications |
Modeling
• According to automotive design requirements, it is converted into design parameters;

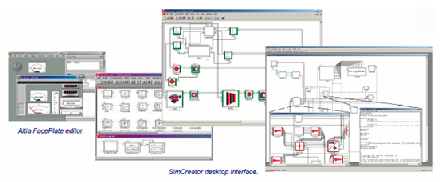

• Output the car design parameters to SimCreator;
• Create test tracking environment and test scenarios;
• Create C/C++ control, dynamics, and simulation components;
• Test vehicle design and control system is more real-time, faster.
Simulation
• Control simulation;
• Design operating environment (cab, power, monitor, voice, etc.);
• Integrate multiple vehicle configurations locally or globally;
• Record, digital save and simulation.
Test
• Prediction/vehicle performance;
• Determine the optimal vehicle configuration;
• Reducing data elements & performing statistical analysis;

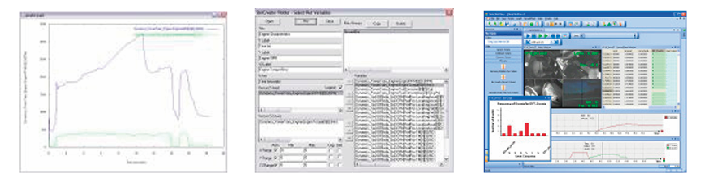

• Validate the data element & time flag in the form of a chart.

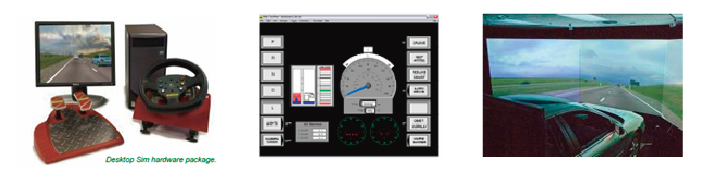

Virtual test field - driving simulator hardware platform
• Sensor for driving and driving signals;
• Base motion control computer and steering wheel force feedback system;
• Vehicle dynamics computing. (one to multiple);
• Graphics rendering computers (one to multiple);
• Image projection system and sound system.

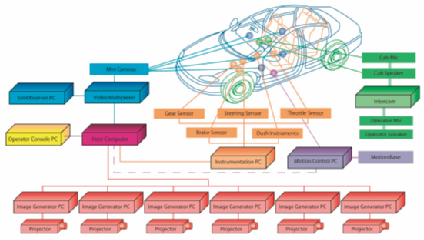

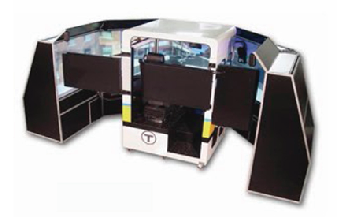

Hardware platform architecture diagram. Hardware platform physical map
|
